Trimble S9 HP ROBOTIC TOTAL STATIONS

Description

Description
Precision you need to succeed.

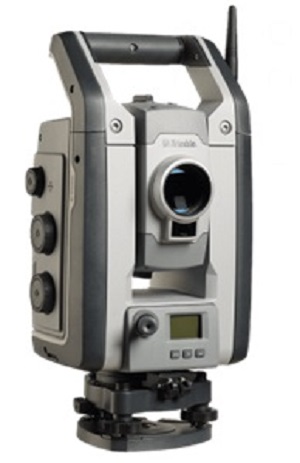

The Trimble® S9 HP total station is a high-performance robotic total station capable of
tackling demanding monitoring, rail, mining and tunneling applications with optimal speed,
accuracy and reliability. With HP, know you are achieving the highest level of accuracy.
Description:
Combining advanced technology and precision engineering, the Trimble S9 HP robotic
total station delivers the measurements you need on specialized projects like monitoring and tunneling.
Long range with accuracy:
Equipped with the Trimble DR HP EDM, you can measure over long range with the high accuracy
that’s required for specialized projects like monitoring mines and dams.
Technologies to expand your capabilities:
Choose technology features to meet project demands, including angular accuracy,
Trimble Long Range FineLock™, Trimble Tracklight®, Trimble VISION™ and Trimble SureScan™

Specs
Count on S9 HP to get difficult jobs done right. This total station provides top-of-line
accuracy and reliability. Trimble S9 HP with top field
technologies and the highest level of accuracy, offers:
Angular accuracy:
0.5″ or 1″
EDM technology:
DR HP
EDM accuracy:
0.8 mm + 1 ppm Prism / 3.0 mm + 2 ppm DR
Maximum range:
7,000 m
Technology standard on all models:
Autolock, Magdrive, SurePoint, FineLock, Active Tracking
Model-dependent features:
Long Range FineLock, Tracklight, VISION

Features:
Available 0.5” or 1” angle accuracy
Trimble DR Plus or HP EDM for optimal speed, accuracy and reliability
Optional Trimble VISION and SureScan technology
Trimble L2P real-time equipment management
Intuitive Trimble Access Field Software
Trimble Business Center Office Software for quick data processing
Trimble 4D Control for monitoring management
