Description

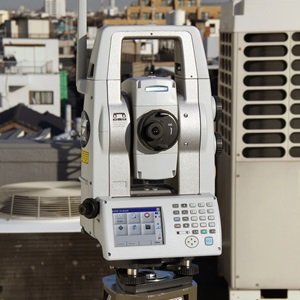

Topcon, MS05 AXII Robotic Monitoring Total Station w/BT, Single Display
When your project demands superior measuring precision, turn to the MS AXII robotic total station for guaranteed performance.
Angular accuracy option of either 0.5” or 1”
Reliable distance accuracy at 0.5mm
Rapid and customizable 2D monitoring
Autocollimation accuracy of 1”
Automated matrix detection and target acquisition
Ultra High-precision Distance Measurement
Precise Angle Accuracies 0.5″ (MS05AXII) / 1″ (MS1AXII)
Auto Aiming Accuracy of 1″ *
Remote Control through on-line PC
Exclusive Reflector Prescan technology
Enforced Durability for Long Term Deformation / Monitoring Applications
*When measured with standard prism
High Accuracy
Measuring Station
Prism
Matrix detection
The MS Series automatically searches within the
predetermined area to quickly measure the prisms as
initial positions for subsequent routine measurements.
This function works in low light or dark conditions where
the reflectors cannot be clearly seen by the human eye.
MS AXII SERIES
Rapid 2D Monitoring®
In addition to natural hazards, engineering structures, such as buildings, dams, tunnels and bridges can always be
affected by movement caused by excavation, heavy construction and piling placement. The MS Series provides superior
precision and is equipped with environmental protection and functions necessary in monitoring applications.
Industrial measurement
The MS05 AXII, when using reflective sheet targets, can achieve sub-millimeter accuracy allowing for measuring the
shape and alignment of large-scale structures such as plants and bridges, as well as precise measurements of ships,
railroad cars, and airplanes.
First-order survey
The MS Series offers high-precision angle accuracy (MS05 AXII: 0.5”, MS1 AXII: 1”) which can be used for a wide range
of precise measurements. Equipped with an automatic tracking system, the high-precision robotic measuring station
can be configured with a remote control system.
Advanced auto-pointing for multiple prisms
Incorporating an advanced auto-pointing algorithm*, optimized for monitoring applications, the instrument automatically
sights the prism closest to the telescope center regardless of the distance from the instrument. This works even if
multiple prisms or other reflective objects are in the field of view and enhances the reliability in periodic monitoring of
