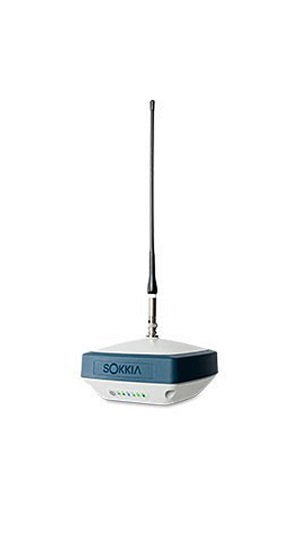

Sokkia GRX3 GNSS Receiver

Description

The Sokkia GRX3 is smaller, lighter, and packed with the most advanced GNSS
technology in a design built to withstand the harshest field environments.
All signals, all satellites, and all constellations — in a compact,
rugged design, with an integrated IMU and eCompass.

Sokkia Tilt Technology
Incorporates a revolutionary 9-axis inertial measurement unit (IMU)
and ultra-compact eCompass,
which compensate for mis-leveling up to 15 degrees.

Sokkia Tilt Technology
L Band Ready Technology
226 Universal Tracking Channels
(Sokkia GPS, GLONASS, Galileo, BeiDou, IRNSS, QZSS, SBAS)
Integrated 400 MHz UHF and SiteCom™ radios
Fusion Positioning™ technology
Configuration Options
The Sokkia GRX3 Integrated GNSS Receiver is available in five kits.
Please select your preference from the menu above.

1030634-01: GRX3 Base Kit
1030635-01: GRX3 Base & Rover Kit
1030632-01: GRX3 Network Rover Kit
1030632-01: GRX3 Rover Kit
1030631-01: GRX3 Static Single Kit
Package What’s Included
Base Kit
Sokkia GRX3 Integrated GNSS Receiver
Hard case with strap
Receiver power cable
Power adapter (Phihong)
Power wall US cables
Serial cable
Micro USB cable, 1.5 m
UHF antenna 440-470 MHz
Printed UHF notice
Default OAF (GG L1 1Hz)
Tribrach with Optical plummet, black
Tribrach adapter #5 with removable center
Alligator clips to SAE cable
Cable, Net G3 power SAE to open ends
Prism spacer, 100mm
Horizontal spacer, Slant height measurement
3M measuring tape
Wood wide frame tripod – Sokkia yellow
Number of Universal Tracking Channels 226 UTC technology
Tracked Signals GPS L1 C/A, L1C, L2P(Y), L2C, L5
GLONASS L1 C/A, L1P, L2 C/A, L2P, L3C
BeiDou B1, B2
Galileo E1, E5a, E5b, Alt-BOC
SBAS L1 C/A, L5 WAAS/MSAS/EGNOS/GAGAN
QZSS L1 C/A, L1C, L1-SAIF, L2C, L5
Static/Fast Static H: 3 mm + 0.4 ppm
V: 5 mm + 0.5 ppm*
RTK/RTK-GLONASS/RTK-Galileo H: 8 mm + 1 ppm
V: 15 mm + 1 ppm
Post Processing H: 3 mm + 0.4 ppm
V: 5 mm + 0.5 ppm*
Integration System GPS L1C, L2C, L5
GLONASS L1C, L2C
Galileo E1, E5a
QZSS L1C, L5
Radio Integrated UHF, 400-470 MHz, and SiteCom™ radio
Communication Bluetooth 4.0, USB 2.0, 4G/LTE, 3G, 2G, Ethernet, GSM/GPRS
Power Supply Rechargeable lithium-ion battery pack, 7.4 V / 15.2 Ah
Sokkia GRX3 GNSS Receiver
$10,200.00 – $23,500.00
SKU:
GRX3
(No reviews yet) Write a Review
Add to Wish List
Shipping:
Calculated at Checkout
Sokkia GRX3 Configuration: (Required)
Rover Kit Network Rover Kit (No Radio)
Base & Rover Kit Base Kit Static Receiver Kit (No Radio)
Current Stock:
Quantity:
Decrease Quantity of Sokkia GRX3 GNSS Receiver
1
Increase Quantity of Sokkia GRX3 GNSS Receiver
Adding to cart… The item has been added
Finance with
As low as
$235/mo
Apply in 60 seconds | Lenders compete
