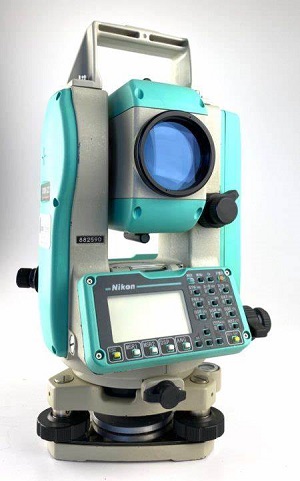

Nikon DTM-322+ Total Station

Description

Nikon introduces the Total Station Nikon DTM-322+ that delivers an economic,
versatile, and easy-to-use platform to make sure you get the job done right.
Nikon’s legendary optics effectively allow in more light to give you brighter,
clearer images. Better optics help you aim more precisely, and they’re
much easier on your eyes – something you’ll really appreciate on long workdays.
Features & Benefits Nikon DTM-322+ Total Station
Choice of 2 accuracies
Standard IR EDM
Distance accuracy of 3mm + 2ppm
Distance range of up to 7,540 feet (2,300 meters) to single prism
Internal memory of up to 25,000 records
Conventional AA batteries (included in the package)
Estimated power time of up to 6 to 15 hours
Dual-axis compensator
Dual face backlit graphic LCD display
Compact & lightweight – 11 lbs. (5Kg)
Internal Bluetooth
Dual face, full numeric keyboard
Versatile and economic
Spesifications Nikon DTM-322+ Total Station
General
Weight Main Unit with Batteries: 10.10 Lb., Carrying Case: 5.3 Lb.
Dimensions : 6.6″ x 6.8″ x 13.2″ (168mm x 173mm x 335mm)
Warranty : 2 Years
Protection Class : Dust and water protection – IP55
Internal Memory : 25,000 Records
Tribrach : Yes
Angle Measurement
Measuring Method/Reading System Incremental encoder
Detection Method : Photoelectric
Minimum Reading 1 second/5 second/10 second
Accuracy : 0.6 mgon
Diameter of Circle : 3.46″ (88mm)
Distance Measurement
EDM Accuracy (Precision) : ±(3+2 ppm × D) mm
Tilt Sensor/Compensator
Range : ±3′
Type : Single-axis
Method : Liquid-electric detection
Setting Accuracy ; ±1″
Battery/Power
Power Source : 4 × AA rechargeable batteries
Battery Life : Up to 15 hours
Telescope
Length of Tube 6.2 in (158 mm)
Image : Erect
Diameter of Objective Lens (Aperture) : 45 mm (1.77 in)
Magnification : 33x (21x/41x with optional eyepieces)
Field of View : 1°20′
Resolving Power : 2.5″
Minimum Focus Distance : 1.5 m (4.92 ft)
Display and Keypad
Type : Graphic LCD display
Sides : Dual face
Keys : Full numeric keypads
Backlight : Yes
Pixels : 128 × 64 pixels
Measurement Range (under fair weather conditions)
Single Prism : 2,000 m (6,560 ft)
Triple Prism : 2,600 m (8,530 ft)
Mini Prism : 1,000 m (3,280 ft)
Reflector Sheet : 5 m to 100 m (16.4 ft to 328 ft)
