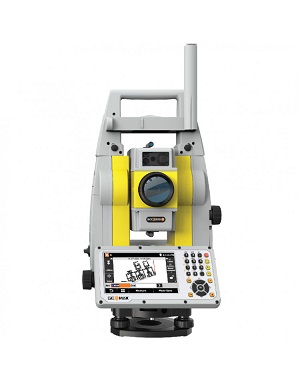

GeoMax Zoom95

Description

Key features of the Zoom95:
Thanks to the accXess EDM™ technology, measurements can be made on the prism,
but also directly on any type of surface up to 1,000 m. The robotized GeoMax Zoom95
total station offers maximum productivity: operated by a single person,
the station is controlled from the rod, more points measured per day,
reduced risk of human error, faster and more accurate layouts, etc.
In combination with the X-PAD Ultimate Survey field software,
data entry is very simple and user-friendly.
The GeoMax Zoom95 Robotic Total Station allows you to find your target efficiently,
track and measure it with constant precision (the three steps that are repeated
with each measurement). Measurements are automated thanks to the new STReAM 360 technology:
Scout: Automatic prism search. A fast-rotating vertical laser scans the work area
to quickly find your rod. All measurement work can therefore be carried out by one person.
TRack: Continuous pursuit of the prism. A specific signal is reflected from the prism
and evaluated “on the fly”. The position of the station
is controlled by the position of the prism.
A i M: Aiming your prism with high precision, anytime,
under any conditions with always high accuracy

The overall performance of the GeoMax Zoom95 Robotic
Total Station perfectly meets the needs of users. Key features:

Angle measurements:
Accuracy 5”, 3”*, 2” and 1” (1” represents 0.5mm at 100m)
Maximum tracking speed: 5 m/s at 20m or 18kmh, 25m/s at 100m or 90kmh
Distance measurements:
Prism: 1 mm + 1.5 ppm, range 3500 m
Prism-free: 2 mm + 2 ppm, range 1000 m
Physical specifications of the station:

Weight: 5.3 kg
Operating temperature: -20 to +50 °C
Dust and rain protection class: IP 55
Electric autonomy: up to 8 hours (4.4 Ah/7.4 V Li-Ion battery)
