Description

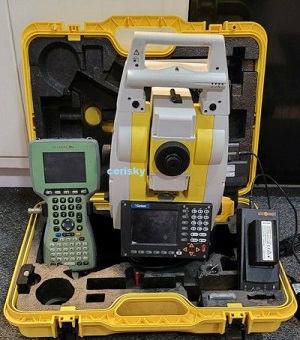

The GeoMax Zoom80 R5 A10 is a high-precision robotic total
station designed for efficient surveying and construction tasks.
Angle Measurements:
Accuracy: Available in 1″ (0.3 mgon), 2″ (0.6 mgon), and 5″ (1.5 mgon) models.
Display Resolution: 0.1″ (0.1 mgon).
Measurement Method: Absolute, continuous, diametrical.
Compensation: Quadruple-axis compensation.
Distance Measurements:
Prism Mode: Up to 3,500 meters with 1 mm + 1.5 ppm accuracy.
Long-Range Mode: Up to 10,000 meters with 5 mm + 2 ppm accuracy.
Reflectorless Mode: Up to 1,000 meters with 2 mm + 2 ppm accuracy
(*Note: over 500 meters, accuracy is 4 mm + 2 ppm).
Interfaces:
Keyboard: Dual 34-key illuminated design.
Display: ¼ VGA color LCD, touch screen.
Data Recording: Removable Compact Flash (CF) card.
Bluetooth: Class II, long-range capability.
Additional Ports: Serial and external power interfaces.
Power Supply:
Internal Battery: Removable Li-Ion 4.4 Ah / 7.4 V
with a typical operating time of 6–8 hours.
External Power: Accepts 11.5 V to 13.5 V DC input.
Physical Specifications:
Weight: Approximately 5.5 kg when fully equipped.
Operating Temperature: Ranges from –20°C to 50°C.
Storage Temperature: Ranges from –40°C to 70°C.
Protection Class: IP54 rating, ensuring dust and water resistance.
Humidity: Operates effectively at up to 95% humidity, non-condensing.
Handheld Controller:
Operating System: Microsoft Windows Mobile®.
Memory: Up to 16 GB.
Ports: Includes serial, USB, expansion slot for
long-range Bluetooth, Bluetooth, and WLAN.
Operating Time: Up to 9 hours.
Weight: Approximately 2.7 kg, including pole,
prism, and handheld controller.
Additional Features:
SCOUT360 Search: A fast-rotating laser fan quickly
locates the prism and, in LOCK mode, follows its movement.
AIM360: Automatically centers the instrument on
the prism after initial aiming, ensuring precise measurements.
NavLight: A stake-out guide light system that
assists in easy and accurate stake-out operations.
Features:
The dual mode EDM in the Zoom80 instruments
provides long range measurement to all targets:
3500m in normal IR (infra red) mode to
a single prism with 1mm + 1.5ppm accuracy
1000m in “reflectorless”
(visible red laser) mode with 2mm + 2ppm accuracy
Large high-contrast color graphic display is
easy to read in fading light or bright sunshine
Totally flexible- configure and program
the Zoom80 for the way you work
Bluetooth transfer of data
Endless drives for fast, comfortable operation
Touch screen gives instant access to all
functions without using the keyboard
NavLight guidelights helps make Stake out easy
Compact Flash cards- reliable storage and transfer of data
